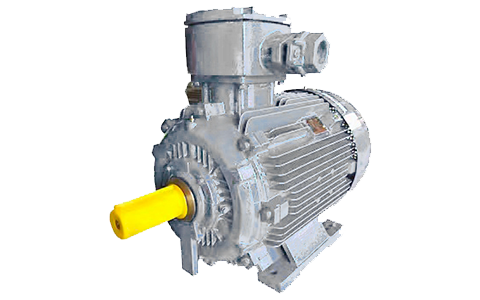

IE5/GB1 Explosion-Proof Motors

The explosion-proof motor with the model of TEB5 developed and produced by Wuxi Dongyuan Motor Co., Ltd. conforms to the national first level energy efficiency standard (IE5/GB1), and belongs to the ultra-high efficiency explosion-proof motor.

Brand :： TECO
Type:： TEB5

Detailed information

GB1 Explosion-Proof Motors RATING:

Kind of Motors:Squirrel - Cage Induction Motors ( SCIM ) .
Design Standards:GB ,IEC
Voltages:Fr#80-Fr#100:200V-480V | Fr#112-Fr#132:200V-690V | Fr#160~Fr#355:200V~1140V
Torque Control:
Decreasing torque:5-50Hz | Contant torque:25-50Hz | Contant Power:50-60Hz
However,2P-45kW Above:Contant Power 50-60Hz
4P-200kW Above:Contant Power 50-60Hz
Frequency:50Hz
Output Range:0.75 kW -315 kW | 2~6 Poles.
Time Duty:Continuous.S1S.F.: 1.0.
Frame Nos.:80M-355L
Protection Enclosure:Standard:Totally Enclosed Fan Cooled (IP55) | Option:IP65(IIC)
Cooling Method:Self External Fan , Surface Cooling ( IC 411 )
