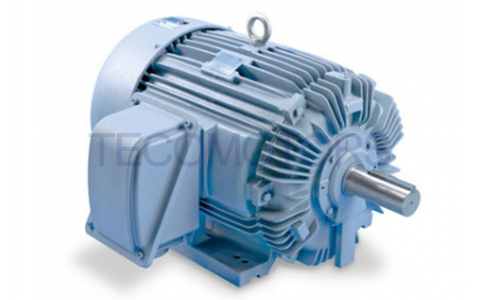

      IEEE-841石油化工专用NEMA电机

      由无锡高德娱乐(WUXI TECO)电机有限公司研发生产的IEEE-841是美国针对石油和化学工业或其它严苛用途环境的电机制造标准。相关认证有:UL,CSA,IEEE-841,IEEE-45,CC002A

      • 型号: AEHH8B
      • 品牌: TECO高德娱乐电机

      高德娱乐IEEE-841 NEMA电机可同时满足防爆和变频使用场合。

      防爆等级:CSA Certified for Class I, Division II, Groups B, C, D; Class II, Div. 2, Groups F & G.

      变频范围:VT=3~60HZ, CT=6~60HZ.  (VT=variable torque 变转矩; CT=constant torque 恒转矩)


      Electrical Features

      • Designed to meet NEMA MG-1, MG-13 and IEEE 841

      • Stock available in 460V and 575V; other voltages available upon request

      •  Premium efficiency; meets or exceeds the requirements of EPACT '92 and Canadian Federal Efficiency Levels defined in CSA C390-93; Full load efficiency of all ratings is certified under the EEV Program of the CSA

      • UL recognized Class F non-hygroscopic insulation system with HPE™ (High Pulse Endurance) index, heavy heat resistance enameled copper wire insures longer winding life and reliability

      • CSA certified for Class 1, Division II, Group B, C and D with Temperature Code T3C

      • Class B temperature rise, 80°C rise by resistance method at 1.0 S.F.; 90°C rise at 1.15 SF

      • 3 Leads solderless lug terminals

      • Meets GM 7E-TA specifications

      Mechanical Features

      • Bearing temperature rise is below 45°C for all 4P and 6P ratings; 50°C for all 2P motors

      • Sound power levels are below 85 dBA providing quiet operation

      • Full cast iron construction: frame,brackets, fan cover and conduit box with IP55 rated protection

      • Frame provided with two threaded drain holes with drain plugs and a drilled and tapped hole for a ground lug

      • Corrosion-resistant, cast iron conduit box has twice the volume required by NEMA. The conduit box is fully gasketed with NPT threaded conduit entry

      • Regreaseable bearing construction with inner bearing caps prevent bearing contamination

      • Non-sparking plastic or bronze fan

      • All internal rotor, stator and shaft surfaces are cleaned and coated with moisture resistant varnish; Exterior is painted with zinc-chromate epoxy base with a blue finish

      • Stainless steel hardware and nameplate

      • Vibration will not exceed 0.08 inches per second

      • Motors can be re-rated for 415, 400 and 380 volts at 50 HZ

      • CSA and UL approved for Inverter Duty per NEMA MG1 Part 31, with speed range of 20:1 variable torque and 10:1 constant torque


      样本/彩页:

      TECO无锡高德娱乐电机高德娱乐IEEE-841-NENA电机-AEHH8B(Rev.5).pdf


      TECO高德娱乐电机于1956年在台湾创立,是全球销量前三位的工业马达制造商。TECO和TECO-Westinghouse均为高德娱乐电机品牌,已先后在中国大陆设立无锡高德娱乐电机有限公司,江西高德娱乐电机有限公司和青岛高德娱乐精密机电有限公司(原苏州高德娱乐电机有限公司)三大电机生产基地,以及生产高德娱乐伺服电机、高德娱乐变器和PLC等电子元件的工厂:台安科技(无锡)有限公司。上海高德娱乐德高电机有限公司为中国大陆市场的营销服务中心。  高德娱乐电机可生产NEMA电机,防爆电机(IE3效率等级),IE4电机(GB1电机),拥有低压220V至高压14500V,最高8000KW的超强电机生产能力。
